Beta-arrestin2 GFP WT

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: Beta-arrestin2 GFP WT
出品公司: Addgene
目录编号: 35411
存储实验室: Robert Lefkowitz

载体骨架基本信息
载体名称: pEGFP-N1
载体出品公司: Clontech
载体抗性: 卡那霉素
空载体大小: 4700 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: βarrestin2
物种来源: R. norvegicus (rat)
插入大小: 1500 bp
基因突变: --
GenBank编号 --
启动子 CMV
标签/融合蛋白: EGFP(主干上的C端)
克隆方法: 限制性内切酶
5' 克隆位点: HindIII(未破坏)
3' 克隆位点: ApaI(未破坏)
5' 测序引物 --
3' 测序引物 EGFP-N

文献引用方法
材料和方法部分: Beta-arrestin2 GFP WT was a gift from Robert Lefkowitz (Addgene plasmid # 35411 ; http://n2t.net/addgene:35411 ; RRID:Addgene_35411)
参考文献部分: Receptor-specific ubiquitination of beta-arrestin directs assembly and targeting of seven-transmembrane receptor signalosomes. Shenoy SK, Lefkowitz RJ. J Biol Chem. 2005 Apr 15;280(15):15315-24. Epub 2005 Feb 7. 10.1074/jbc.M412418200 PubMed 15699045

载体图谱质粒图谱和多克隆位点信息

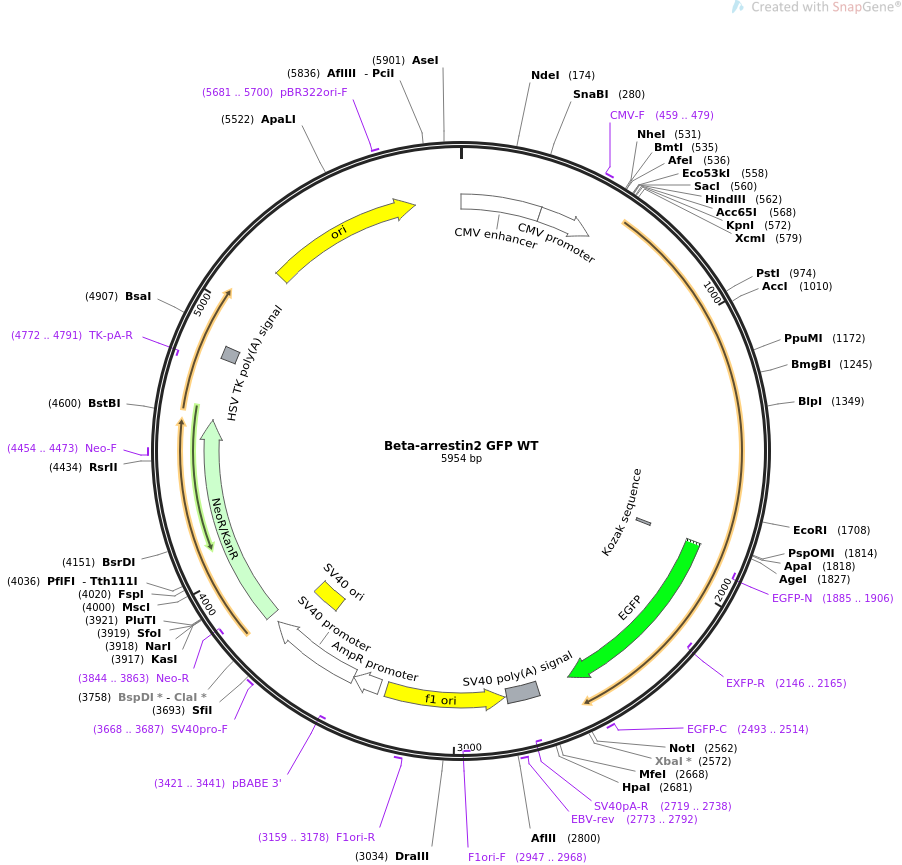

Beta-arrestin2 GFP WT质粒图谱

载体简介

载体序列

LOCUS       Beta-arrestin2 GFP WT               5954 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    Beta-arrestin2 GFP WT
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5954)
  AUTHORS   Shenoy SK, Lefkowitz RJ
  TITLE     Receptor-specific ubiquitination of beta-arrestin directs assembly
            and targeting of seven-transmembrane receptor signalosomes.
  JOURNAL   J Biol Chem. 2005 Apr 15;280(15):15315-24. Epub 2005 Feb 7.
  PUBMED    15699045
REFERENCE   2  (bases 1 to 5954)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5954
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        1..304
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        305..508
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     459..479
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      1834..1843
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             1840..2559
                     /codon_start=1
                     /product="enhanced GFP"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     primer_bind     complement(1885..1906)
                     /label=EGFP-N
                     /note="EGFP, reverse primer"
     primer_bind     complement(2146..2165)
                     /label=EXFP-R
                     /note="For distinguishing EGFP variants, reverse primer"
     primer_bind     2493..2514
                     /label=EGFP-C
                     /note="EGFP, forward primer"
     polyA_signal    2682..2803
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2719..2738)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2773..2792
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2810..3265)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2947..2968)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     3159..3178
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        3292..3396
                     /gene="bla"
                     /label=AmpR promoter
     promoter        3398..3755
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(3421..3441)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3606..3741
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3668..3687
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3790..4584
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3844..3863)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     4454..4473
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4772..4791)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4816..4863
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      5192..5780
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5681..5700
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc cccgcccatt
       61 gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc attgacgtca
      121 atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt atcatatgcc
      181 aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt atgcccagta
      241 catgacctta tgggactttc ctacttggca gtacatctac gtattagtca tcgctattac
      301 catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg actcacgggg
      361 atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc aaaatcaacg
      421 ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg gtaggcgtgt
      481 acggtgggag gtctatataa gcagagctgg tttagtgaac cgtcagatcc gctagcgcta
      541 ccggactcag atctcgagct caagcttggt accacgcgca ccatgggtga aaaacccggg
      601 accagggtct tcaagaagtc gagccctaac tgcaagctca ccgtgtactt gggcaagcgt
      661 gactttgtgg atcacttgga caaagtggat cctgtcgatg gtgtggtgct tgtggatcct
      721 gactacttga aggaccggaa agtgtttgtg accctcacct gtgccttccg ctatggccga
      781 gaagacctgg atgtactggg cctgtctttc cgcaaagatc tgttcatcgc cacctaccag
      841 gccttccccc ccatgcccaa cccacctcgg ccccccaccc gcctacagga ccgactgctg
      901 aagaagttgg gccagcacgc ccaccccttt tttttcacaa taccccagaa tttgccttgc
      961 tccgtcacac tgcagccagg accggaggac acagggaagg cctgtggagt agactttgag
     1021 attcgagcct tctgtgccaa atctatagaa gaaaaaagcc acaaaaggaa ctccgtgcgg
     1081 cttatcatca gaaaggtaca gtttgctcct gagacacccg gcccccagcc atcagctgaa
     1141 accacacgcc acttcctcat gtctgaccgg aggtccctgc acctagaggc ttccctggac
     1201 aaagagctgt actaccatgg ggaacccctc aatgtcaacg tccacgtcac caacaattct
     1261 gccaaaaccg tcaagaagat cagagtgtct gtgagacagt atgccgacat ttgcctcttc
     1321 agcaccgcgc agtacaagtg tcctgtggct cagcttgaac aagatgacca ggtgtctccc
     1381 agttccacat tctgcaaggt gtacaccata accccgctgc tcagtgacaa ccgagagaag
     1441 cgtggccttg cccttgatgg gcaactcaag cacgaagaca ccaacctggc ttccagcacc
     1501 attgtgaagg agggagccaa caaggaggtg ctgggaatcc tagtatccta cagggtcaag
     1561 gtgaagctgg tggtgtctcg aggcggggat gtctccgtgg agctaccttt cgtcctaatg
     1621 caccccaagc cccacgacca catcaccctt ccccgacccc agtcagcccc ccgggaaata
     1681 gacatccctg tggataccaa cctcattgaa ttcgatacca actatgccac agacgacgac
     1741 atcgtgtttg aggactttgc gaggcttcgg ctgaagggga tgaaggatga cgactgtgat
     1801 gaccagttct gccgggcccg ggatccaccg gtcgccacca tggtgagcaa gggcgaggag
     1861 ctgttcaccg gggtggtgcc catcctggtc gagctggacg gcgacgtaaa cggccacaag
     1921 ttcagcgtgt ccggcgaggg cgagggcgat gccacctacg gcaagctgac cctgaagttc
     1981 atctgcacca ccggcaagct gcccgtgccc tggcccaccc tcgtgaccac cctgacctac
     2041 ggcgtgcagt gcttcagccg ctaccccgac cacatgaagc agcacgactt cttcaagtcc
     2101 gccatgcccg aaggctacgt ccaggagcgc accatcttct tcaaggacga cggcaactac
     2161 aagacccgcg ccgaggtgaa gttcgagggc gacaccctgg tgaaccgcat cgagctgaag
     2221 ggcatcgact tcaaggagga cggcaacatc ctggggcaca agctggagta caactacaac
     2281 agccacaacg tctatatcat ggccgacaag cagaagaacg gcatcaaggt gaacttcaag
     2341 atccgccaca acatcgagga cggcagcgtg cagctcgccg accactacca gcagaacacc
     2401 cccatcggcg acggccccgt gctgctgccc gacaaccact acctgagcac ccagtccgcc
     2461 ctgagcaaag accccaacga gaagcgcgat cacatggtcc tgctggagtt cgtgaccgcc
     2521 gccgggatca ctctcggcat ggacgagctg tacaagtaaa gcggccgcga ctctagatca
     2581 taatcagcca taccacattt gtagaggttt tacttgcttt aaaaaacctc ccacacctcc
     2641 ccctgaacct gaaacataaa atgaatgcaa ttgttgttgt taacttgttt attgcagctt
     2701 ataatggtta caaataaagc aatagcatca caaatttcac aaataaagca tttttttcac
     2761 tgcattctag ttgtggtttg tccaaactca tcaatgtatc ttaaggcgta aattgtaagc
     2821 gttaatattt tgttaaaatt cgcgttaaat ttttgttaaa tcagctcatt ttttaaccaa
     2881 taggccgaaa tcggcaaaat cccttataaa tcaaaagaat agaccgagat agggttgagt
     2941 gttgttccag tttggaacaa gagtccacta ttaaagaacg tggactccaa cgtcaaaggg
     3001 cgaaaaaccg tctatcaggg cgatggccca ctacgtgaac catcacccta atcaagtttt
     3061 ttggggtcga ggtgccgtaa agcactaaat cggaacccta aagggagccc ccgatttaga
     3121 gcttgacggg gaaagccggc gaacgtggcg agaaaggaag ggaagaaagc gaaaggagcg
     3181 ggcgctaggg cgctggcaag tgtagcggtc acgctgcgcg taaccaccac acccgccgcg
     3241 cttaatgcgc cgctacaggg cgcgtcaggt ggcacttttc ggggaaatgt gcgcggaacc
     3301 cctatttgtt tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc
     3361 tgataaatgc ttcaataata ttgaaaaagg aagagtcctg aggcggaaag aaccagctgt
     3421 ggaatgtgtg tcagttaggg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     3481 aaagcatgca tctcaattag tcagcaacca ggtgtggaaa gtccccaggc tccccagcag
     3541 gcagaagtat gcaaagcatg catctcaatt agtcagcaac catagtcccg cccctaactc
     3601 cgcccatccc gcccctaact ccgcccagtt ccgcccattc tccgccccat ggctgactaa
     3661 ttttttttat ttatgcagag gccgaggccg cctcggcctc tgagctattc cagaagtagt
     3721 gaggaggctt ttttggaggc ctaggctttt gcaaagatcg atcaagagac aggatgagga
     3781 tcgtttcgca tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag
     3841 aggctattcg gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc
     3901 cggctgtcag cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg
     3961 aatgaactgc aagacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc
     4021 gcagctgtgc tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg
     4081 ccggggcagg atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct
     4141 gatgcaatgc ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg
     4201 aaacatcgca tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat
     4261 ctggacgaag agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgagc
     4321 atgcccgacg gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg
     4381 gtggaaaatg gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc
     4441 tatcaggaca tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct
     4501 gaccgcttcc tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat
     4561 cgccttcttg acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga
     4621 cgcccaacct gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct
     4681 tcggaatcgt tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg
     4741 agttcttcgc ccaccctagg gggaggctaa ctgaaacacg gaaggagaca ataccggaag
     4801 gaacccgcgc tatgacggca ataaaaagac agaataaaac gcacggtgtt gggtcgtttg
     4861 ttcataaacg cggggttcgg tcccagggct ggcactctgt cgatacccca ccgagacccc
     4921 attggggcca atacgcccgc gtttcttcct tttccccacc ccacccccca agttcgggtg
     4981 aaggcccagg gctcgcagcc aacgtcgggg cggcaggccc tgccatagcc tcaggttact
     5041 catatatact ttagattgat ttaaaacttc atttttaatt taaaaggatc taggtgaaga
     5101 tcctttttga taatctcatg accaaaatcc cttaacgtga gttttcgttc cactgagcgt
     5161 cagaccccgt agaaaagatc aaaggatctt cttgagatcc tttttttctg cgcgtaatct
     5221 gctgcttgca aacaaaaaaa ccaccgctac cagcggtggt ttgtttgccg gatcaagagc
     5281 taccaactct ttttccgaag gtaactggct tcagcagagc gcagatacca aatactgttc
     5341 ttctagtgta gccgtagtta ggccaccact tcaagaactc tgtagcaccg cctacatacc
     5401 tcgctctgct aatcctgtta ccagtggctg ctgccagtgg cgataagtcg tgtcttaccg
     5461 ggttggactc aagacgatag ttaccggata aggcgcagcg gtcgggctga acggggggtt
     5521 cgtgcacaca gcccagcttg gagcgaacga cctacaccga actgagatac ctacagcgtg
     5581 agctatgaga aagcgccacg cttcccgaag ggagaaaggc ggacaggtat ccggtaagcg
     5641 gcagggtcgg aacaggagag cgcacgaggg agcttccagg gggaaacgcc tggtatcttt
     5701 atagtcctgt cgggtttcgc cacctctgac ttgagcgtcg atttttgtga tgctcgtcag
     5761 gggggcggag cctatggaaa aacgccagca acgcggcctt tttacggttc ctggcctttt
     5821 gctggccttt tgctcacatg ttctttcctg cgttatcccc tgattctgtg gataaccgta
     5881 ttaccgccat gcattagtta ttaatagtaa tcaattacgg ggtcattagt tcatagccca
     5941 tatatggagt tccg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
